[CF锥形变径] 规格参数：

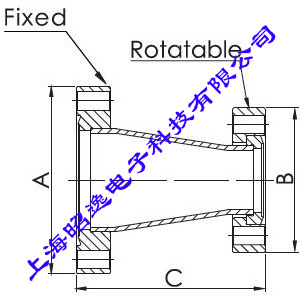

CF锥形变径-法兰不旋转|
Model No.
|
Material
|
A
|
B
|
C
|
|
CF25CRA16
|
304 S.S.
|
70
|
35
|
44.1
|
|
CF35CRA16
|
304 S.S.
|
70
|
35
|
69.6
|
|
CF35CRA25
|
304 S.S.
|
70
|
54
|
70.3
|
|
CF50CRA25
|
304 S.S.
|
86
|
54
|
73.1
|
|
CF50CRA35
|
304 S.S.
|
86
|
70
|
73.3
|
|
CF63CRA35
|
304 S.S.
|
114
|
70
|
74.8
|
|
CF63CRA50
|
304 S.S.
|
114
|
86
|
77.6
|
|
CF100CRA50
|
304 S.S.
|
152
|
86
|
111.8
|
|
CF100CRA63
|
304 S.S.
|
152
|
114
|
111.3
|
|
CF100CRA80
|
304 S.S.
|
152
|
130
|
113.8
|
|
CF150CRA80
|
304 S.S.
|
202
|
130
|
176.4
|
|
CF150CRA100
|
304 S.S.
|
202
|
152
|
178.2
|
|
Model No.
|
Material
|
A
|
B
|
C
|
|
CF25CRA16R
|
304 S.S.
|
70
|
35
|
44.1
|
|
CF35CRA16R
|
304 S.S.
|
70
|
35
|
69.6
|
|
CF35CRA25R
|
304 S.S.
|
70
|
54
|
70.3
|
|
CF50CRA25R
|
304 S.S.
|
86
|
54
|
73.1
|
|
CF50CRA35R
|
304 S.S.
|
86
|
70
|
73.3
|
|
CF63CRA35R
|
304 S.S.
|
114
|
70
|
74.8
|
|
CF63CRA50R
|
304 S.S.
|
114
|
86
|
77.6
|
|
CF100CRA50R
|
304 S.S.
|
152
|
86
|
111.8
|
|
CF100CRA63R
|
304 S.S.
|
152
|
114
|
111.3
|
|
CF100CRA80R
|
304 S.S.
|
152
|
130
|
113.8
|
|
CF150CRA80R
|
304 S.S.
|
202
|
130
|
176.4
|
|
CF150CRA100R
|
304 S.S.
|
202
|
152
|
178.2
|
[CF锥形变径] 产品特点：
1.CF锥形变径接头与CF铜垫片、CF专用螺栓配套使用[CF锥形变径] 主要材质：
1.CF锥形变径接头的材质种类：304 S.S. or 316L S.S.[CF锥形变径] 包装方式：
1.法兰保护盖或者纸箱包装,如有特殊要求请来电说明
