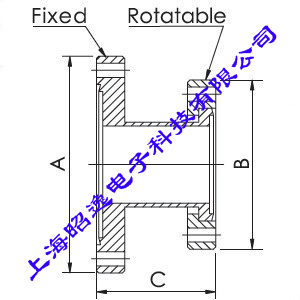

[CF直通变径] 规格参数：
CF直通变径-法兰不旋转|
Model No.
|
Material
|
A
|
B
|
C
|
|
CF25SRA16
|
304 S.S.
|
70
|
35
|
44.1
|
|
CF35SRA16
|
304 S.S.
|
70
|
35
|
69.6
|
|
CF35SRA25
|
304 S.S.
|
70
|
54
|
70.3
|
|
CF50SRA25
|
304 S.S.
|
86
|
54
|
73.1
|
|
CF50SRA35
|
304 S.S.
|
86
|
70
|
73.3
|
|
CF63SRA35
|
304 S.S.
|
114
|
70
|
74.8
|
|
CF63SRA50
|
304 S.S.
|
114
|
86
|
77.6
|
|
CF100SRA50
|
304 S.S.
|
152
|
86
|
111.8
|
|
CF100SRA63
|
304 S.S.
|
152
|
114
|
111.3
|
|
CF100SRA80
|
304 S.S.
|
152
|
130
|
113.8
|
|
CF150SRA80
|
304 S.S.
|
202
|
130
|
176.4
|
|
CF150SRA100
|
304 S.S.
|
202
|
152
|
178.2
|
|
Model No.
|
Material
|
A
|
B
|
C
|
|
CF25SRA16R
|
304 S.S.
|
70
|
35
|
44.1
|
|
CF35SRA16R
|
304 S.S.
|
70
|
35
|
69.6
|
|
CF35SRA25R
|
304 S.S.
|
70
|
54
|
70.3
|
|
CF50SRA25R
|
304 S.S.
|
86
|
54
|
73.1
|
|
CF50SRA35R
|
304 S.S.
|
86
|
70
|
73.3
|
|
CF63SRA35R
|
304 S.S.
|
114
|
70
|
74.8
|
|
CF63SRA50R
|
304 S.S.
|
114
|
86
|
77.6
|
|
CF100SRA50R
|
304 S.S.
|
152
|
86
|
111.8
|
|
CF100SRA63R
|
304 S.S.
|
152
|
114
|
111.3
|
|
CF100SRA80R
|
304 S.S.
|
152
|
130
|
113.8
|
|
CF150SRA80R
|
304 S.S.
|
202
|
130
|
176.4
|
|
CF150SRA100R
|
304 S.S.
|
202
|
152
|
178.2
|
[CF直通变径] 基本描述：
1.CF直通变径接头又名CF法兰大小头,英文描述CF Straight Reducing Adaptor[CF直通变径] 产品特点：
1.CF直通变径接头与CF铜垫片、CF专用螺栓配套使用[CF直通变径] 主要材质：
1.CF直通变径接头的材质种类：304 S.S. or 316L S.S.[CF直通变径] 包装方式：
1.法兰保护盖或者纸箱包装,如有特殊要求请来电说明
