[CF变径法兰] 规格参数：

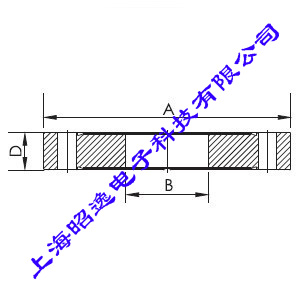

CF变径法兰|
Model No.
|
Material
|
Large Flange
|
Small Flange
|
B
|
D
|
|
CF35RF16
|
304 S.S.
|
CF35
|
CF16TAP
|
15.8
|
12.7
|
|
CF63RF16
|
304 S.S.
|
CF63
|
CF16TAP
|
15.8
|
17.5
|
|
CF63RF35
|
304 S.S.
|
CF63
|
CF35TAP
|
38.1
|
17.5
|
|
CF100RF35
|
304 S.S.
|
CF100
|
CF35TAP
|
38.1
|
20
|
|
CF100RF63
|
304 S.S.
|
CF100
|
CF63TAP
|
63.5
|
20
|
|
CF150RF35
|
304 S.S.
|
CF150
|
CF35TAP
|
38.1
|
22
|
|
CF150RF63
|
304 S.S.
|
CF150
|
CF63TAP
|
63.5
|
22
|
|
CF150RF100
|
304 S.S.
|
CF150
|
CF63TAP
|
101.6
|
22
|
|
CF200RF35
|
304 S.S.
|
CF200
|
CF35TAP
|
38.1
|
24.5
|
|
CF200RF63
|
304 S.S.
|
CF200
|
CF63TAP
|
63.5
|
24.5
|
|
CF200RF100
|
304 S.S.
|
CF200
|
CF100TAP
|
101.6
|
24.5
|
|
CF200RF150
|
304 S.S.
|
CF200
|
CF150TAP
|
152.4
|
24.5
|
|
CF250RF35
|
304 S.S.
|
CF250
|
CF35TAP
|
38.1
|
28.5
|
|
CF250RF63
|
304 S.S.
|
CF250
|
CF63TAP
|
63.5
|
28.5
|
|
CF250RF100
|
304 S.S.
|
CF250
|
CF100TAP
|
101.6
|
28.5
|
|
CF250RF150
|
304 S.S.
|
CF250
|
CF150TAP
|
152.4
|
28.5
|
|
CF250RF200
|
304 S.S.
|
CF250
|
CF200TAP
|
203.2
|
28.5
|
[CF变径法兰] 基本描述：
1.CF变径法兰英文描述CF Zero Length Reducer Flanges or Reducing Flanges[CF变径法兰] 主要材质：
1.CF变径法兰的材质种类：304 S.S. or 316L S.S.[CF变径法兰] 包装方式：
1.法兰保护盖或者纸箱包装,如有特殊要求请来电说明
